EMS Testing Software

EMS测试软件

BAT-EMC-EMS

Get a Quote

Description

BAT-EMC是一种All in one的自动化、智能化电磁兼容测试与监控软件平台，包括射频传导抗扰度、辐射抗扰度等测试功能。

BAT-EMC测试软件包含射频传导抗扰度、辐射抗扰度测试模块，能执行IEC 61000-4-6、IEC 61000-4-3标准中要求的CS、RS测试，同时也能满足GJB 151B、GJB 151A、MIL-STD-461G等标准中要求的CS114、RS103测试项目；ISO 11452-2、ISO 11452-4标准要求要求的RI、BCI测试项目以及国际通行测试标准所要求的辐射抗扰度测试、射频传导抗扰度测试；测试应用不受限于产品所属领域，该软件除满足军工产品、航空航天电子产品的RS、CS测试外，也可进行汽车电子产品、民用电子产品的RI、BCI测试，而无需任何升级，节省投资。

测试功能：

? Conducted Immunity 射频传导抗扰度（电压法/电流法/功率法）

? Radiated Radiated Immunity 辐射电场抗扰度

? Radiated Magnetic Immunity 辐射磁场抗扰度

可满足的标准及对应的项目：

IEC 61000-4-6 射频传导抗扰度CS
ISO 11451-4 /ISO 11452-4 BCI大电流注入测试
ISO 11451-3/ISO 11452-9 手持式发射机抗扰度
GJB 151B / MIL-STD-461 CS114 电缆束注入传导敏感度
GJB 151B / MIL-STD-461 CS101/CS102/CS109
RTCA DO-160 section 18/19

IEC 61000-4-3 辐射抗扰度

ISO 11451-2 / ISO 11452-2/SAE J1113-25 汽车整车/零部件辐射抗扰度
ISO 11452-5 带状线辐射抗扰度

ISO 11452-8 汽车零部件低频磁场抗扰度

GJB 151B / MIL-STD-461 RS101 磁场辐射敏感度
GJB 151B / MIL-STD-461 RS103 电场辐射敏感度

RTCA DO-160 section 20 射频敏感度（辐射/传导敏感度）

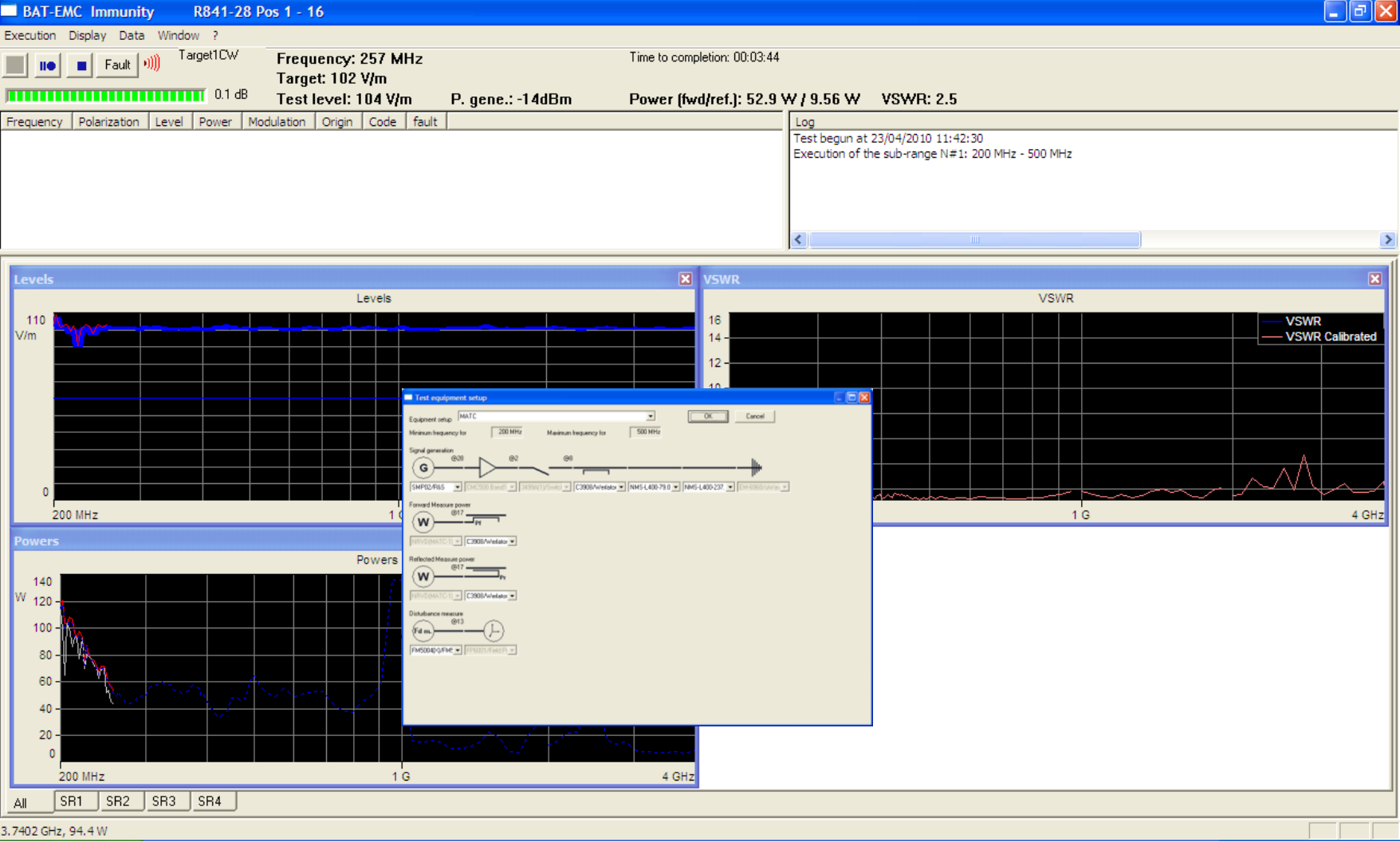

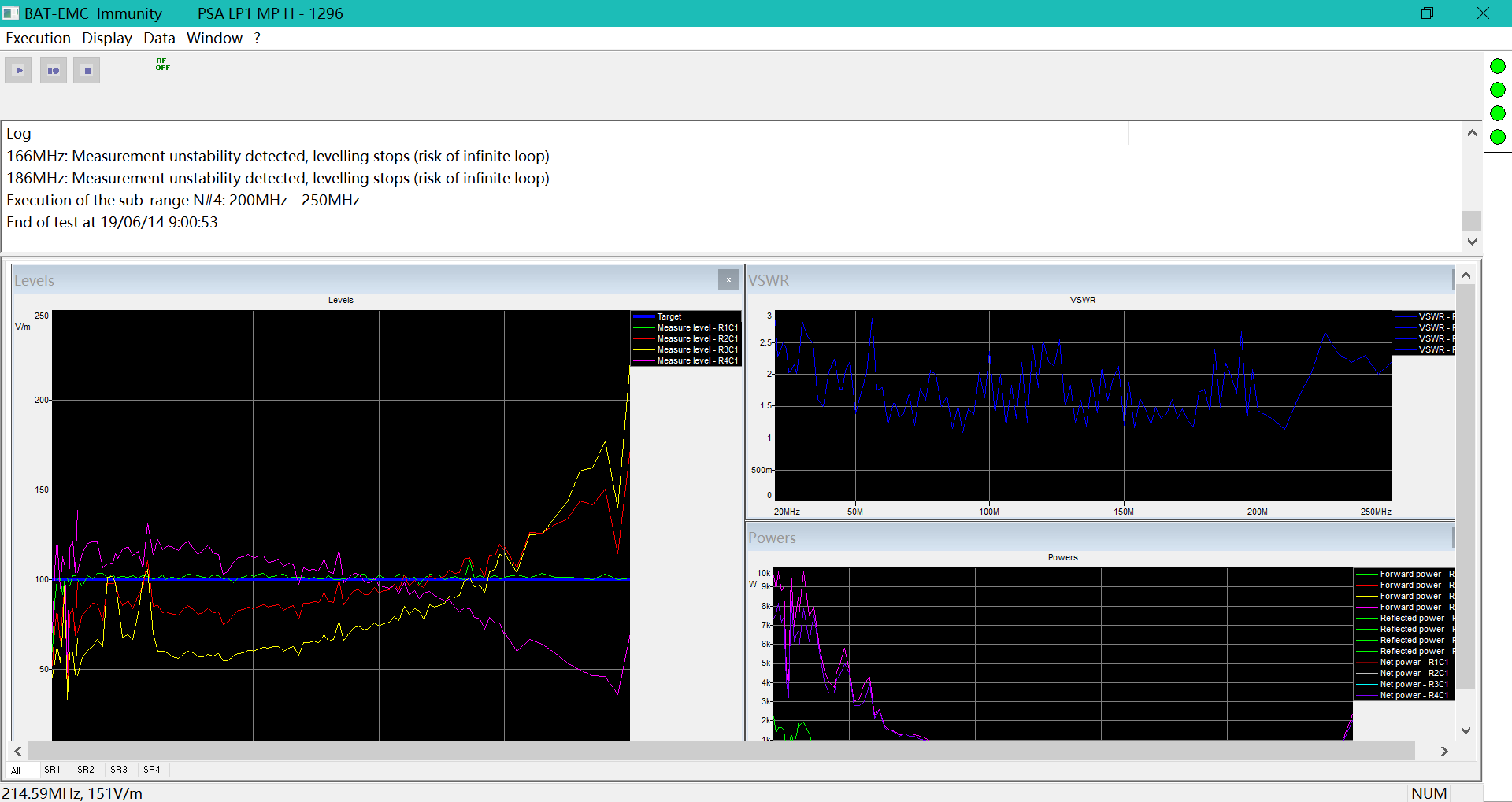

辐射抗扰度测试系统图片：
