IC-Transient Immunity System

IC-Transient Immunity System

ESD耦合探头组

ESD耦合探头组

P331-2 set

Description

P331-2型ESD发生器适合于按照IEC 61000-4-2/HMM标准，直接在集成电路引脚或通过耦合器在USB、LVDS、以太网等高速端口处进行有线ESD 耦合。

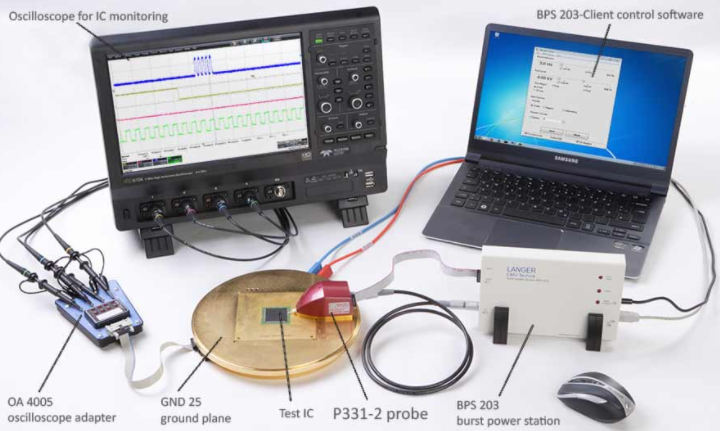

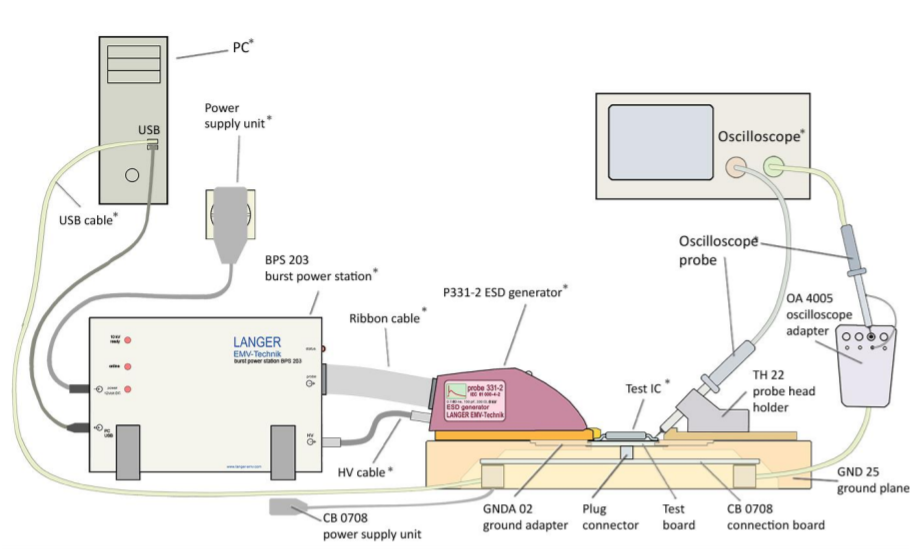

P331-2 set型静电耦合套装由P331-2 静电发生器、触发电站、分流器和控制软件组成。

主要技术参数：

内阻：330Ω

脉冲参数：

波形：0.7/60 ns

频率：0.1 Hz - 10 Hz

电压：± (0.1 - 6) kV

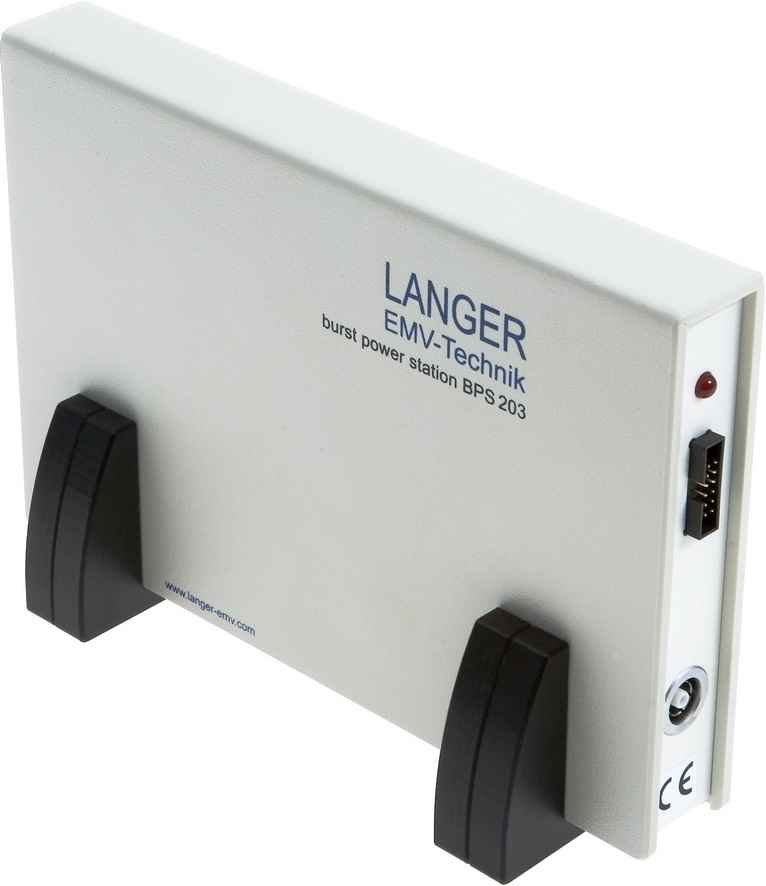

BPS 203猝发电站充当高压电源和ESD检验的控制单元。它通过USB接口与用户的PC相连接，并借助BPS203-Client软件实现控制。

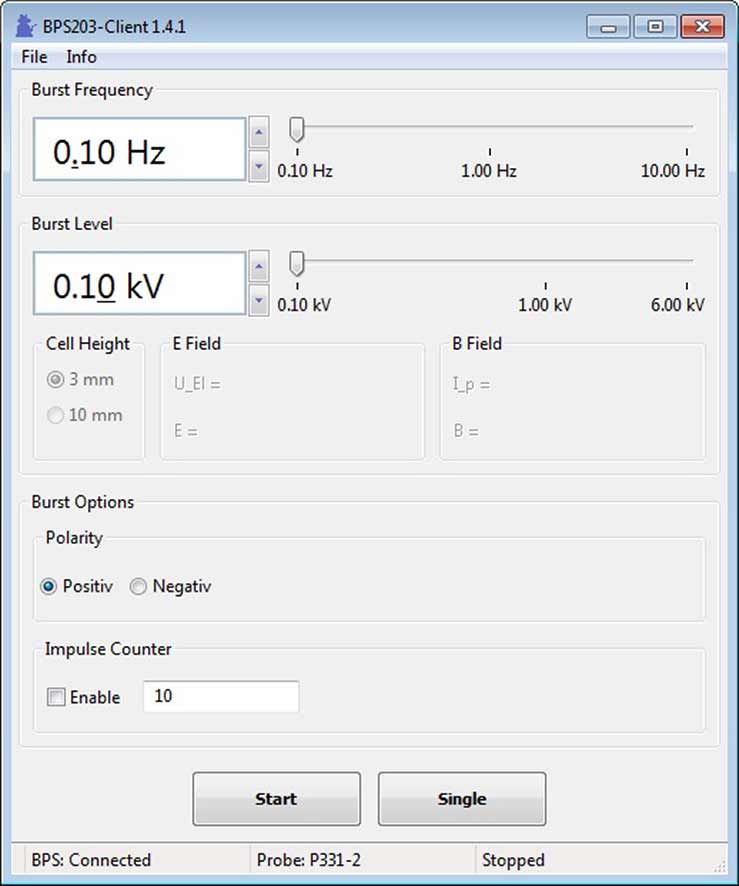

BPS203-Client用于控制BPS 203猝发电站以及与其相连的受测物。该软件要安装在用户的PC上。

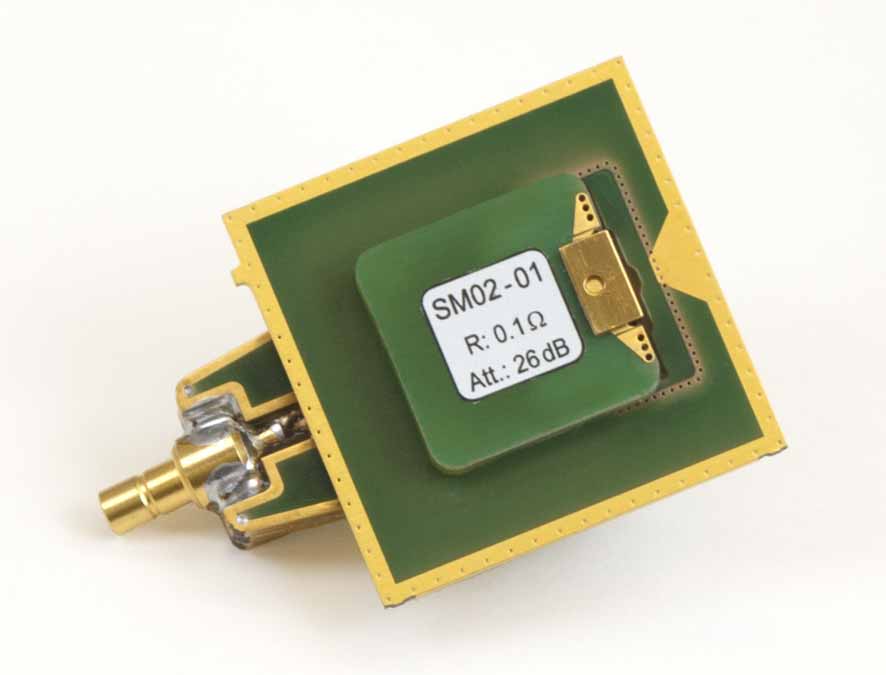

SM 02-01型分流器用于测量频率小于3 GHz 的快速瞬变电流脉冲。用它可以测量干扰发生器发出的电流脉冲。例如猝发序列或电快速瞬变发生器，或者ESD发生器。
